- Durable Cast Iron Build: Constructed from high-toughness cast iron and finished with plastic spraying, this manual leather sewing machine is built to withstand long-term use and daily wear.
- Smooth Manual Operation: Designed with a front and rear ergonomic handwheel and two-speed pulley, it allows precise control and effortless sewing on leather, canvas, and heavy fabrics.
- 360° Omnidirectional Sewing: The unique upward feeding mechanism rotates freely, letting you change direction without repositioning fabric—perfect for cylindrical objects like boots and bags.
- Customizable Stitch Length: Easily adjust stitch spacing from 5 to 15 stitches per inch to handle various materials, from thin cotton to thick leather, making it ideal for versatile sewing needs.
- Flexible Needle Compatibility: Dual-head needle plate supports different needle sizes, giving you more options when working with diverse thread types including nylon, polyester, and cotton.
Description

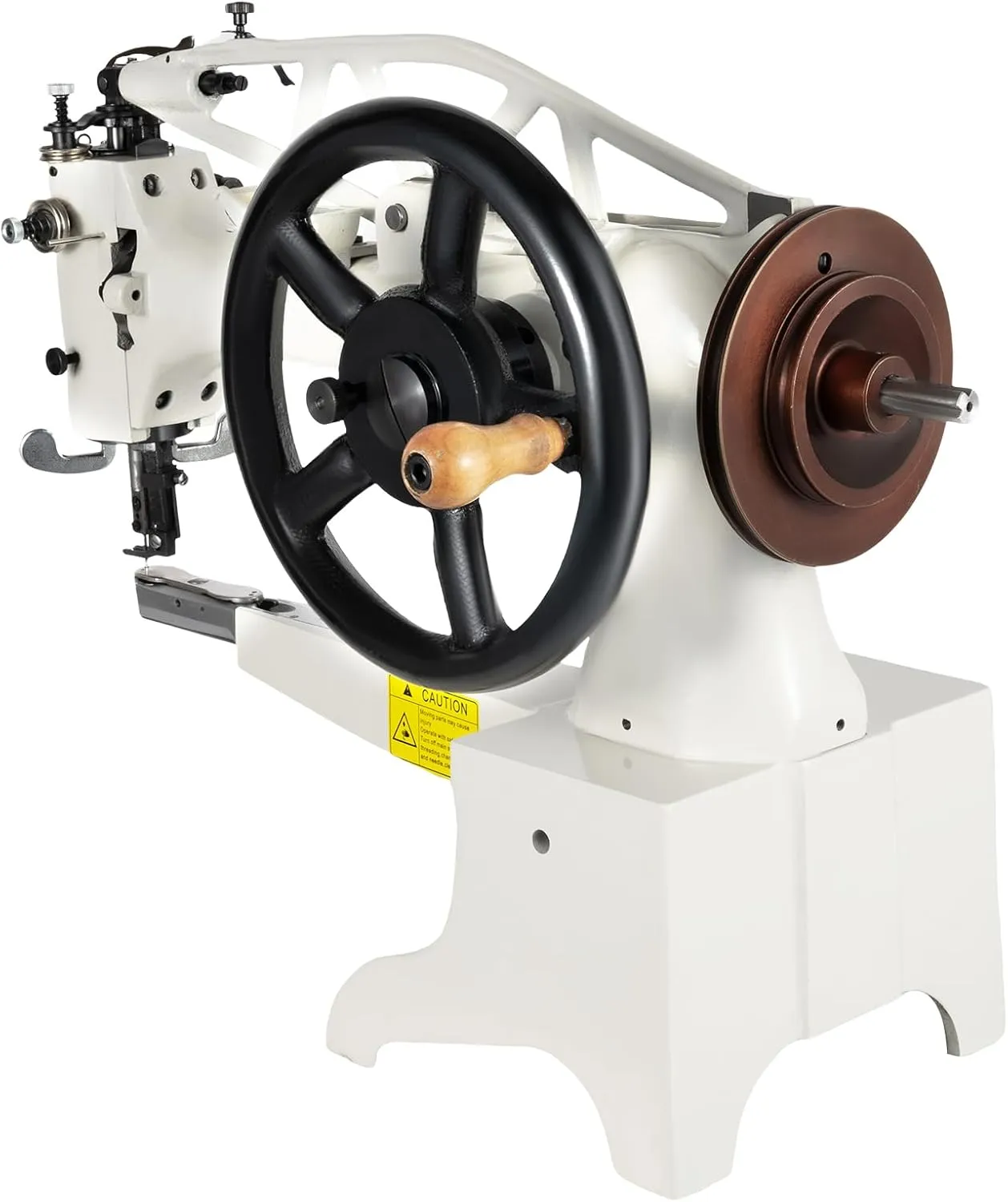

This manual leather sewing machine is designed for efficient stitching of thick materials like leather, rubber, and canvas, making it ideal for repairing shoes, boots, and bags. Crafted from durable cast iron with a finish, it features a long 11.81-inch arm for extended reach and a 360° rotating feed for flexible operation. The adjustable stitch length and thread tension offer greater control across various applications, while the dual-head needle plate increases compatibility. With easy manual operation, this hand crank cobbler machine is perfect for home DIY, craft, and workshop use.
Specification
Model: SM-2972
Material: Cast Iron
Surface Treatment: Plastic Spraying
Single Needle: DP*17 16#
Lubricating Oil: 10# White Oil
Stitch Method: Straight Line
Needle Plate Type: Double-headed
Operation Mode: Manual; Electric(Require Table Plate Frame and Motor, Not Included)
Max. Sewing Speed: 500 stitches/min
Sewing Table Diameter: 30mm/ 1.81in
Stitch Length: 5-15 stitches/inch (5.1mm - 1.7mm)
Sewing Foot Stroke: 6.4-9.5mm
Arm Length: 30cm/ 11.81inch
Net Weight: 28kg/ 61.73 lbs
Gross Weight: 29.55kg/ 65.15 lbs
Product Size: 55*21*43.5cm/ 21.65*8.27*17.13inch
Packing Size: 58*29*49cm/ 22.83*11.42*19.29inch
Package Included
1* Sewing Machine
1* English Manual
Other Accessories for Installation
Notes
Please note that this product only includes the sewing machine. Other accessories such as a motor, table plate frame, etc. required for an electric drive need to be purchased separately.
Please take care to avoid turning the handwheel upside down when using it to prevent the shuttle from knocking inside.
Please note that the machine needs to be manually lubricated before each use.
Please note that there is a groove on the needle, which must face right, otherwise, the thread will break.
